Shelter from the wind
The mobile screen for business or home.

Electrical up and down movement. Created with the lower part fixed and a motorized mobile glass panel.
A versatile barrier enabling contemplation of the outside panorama.

Intended use

Created to protect the outdoor areas of bars, restaurants and hotels (horeca), which want to make use of arcades, terraces and other open spaces all year round. It creates a transparent barrier, which disappears when fine weather arrives.

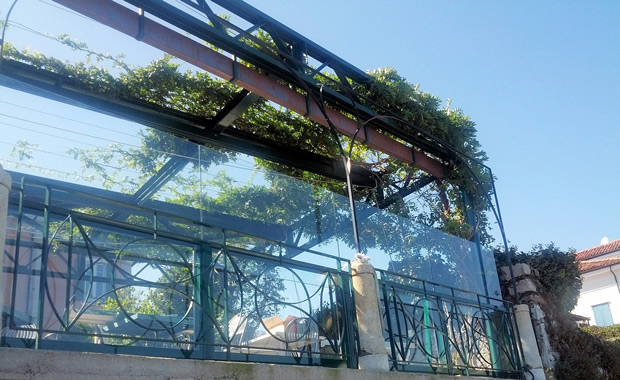

It is the perfect glass wind break for seaside areas that are often subject to strong winds, so that tables in the open air can be delimited and protected.

Ideal also in order to shelter private houses’ outdoor areas from cold air and wind: terraces, verandas, balconies, arcades, gazebos, swimming pools and gardens.

The situations in which the BellaVista System can provide protection from the wind are many and various; here we are listing some of them::

• Public spaces or houses close to the sea or lakes, or windy areas in general.
• Outdoor areas created on public space, which are not able to use fixed closures.
• Protection and/or privacy, for example, by swimming pools or solarium.
• Open balconies or terraces.
• Suitable for Horeca or Home.

Designed to protect tables placed outdoors in public spaces, Bellavista System has a clamp fastening system allowing easy and speedy removal when required.

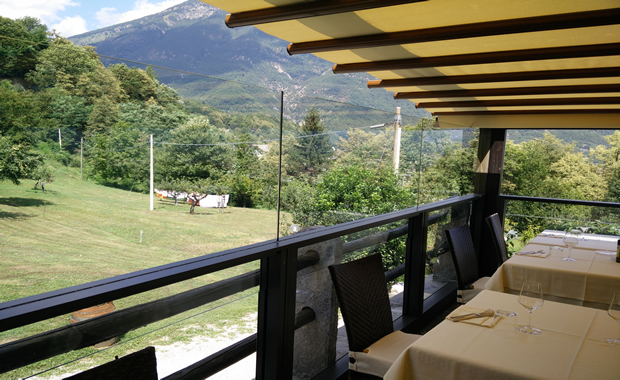

Windbreaker, Ristorante Belvedere - Isola dei Pescatori, Lago Maggiore

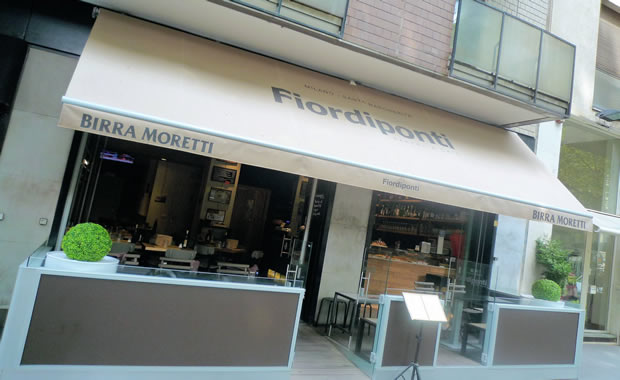

Windscreen, Milano. Glass in lower position

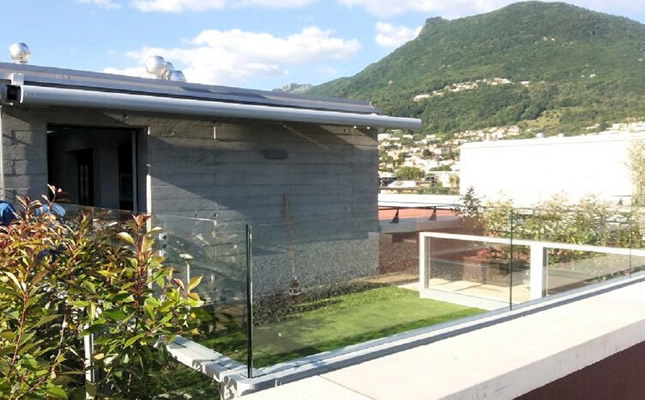

Windscreen, Glass in upper position

The mobile screen, known also as a wind break, has been designed and built to measure with selected and tested materials in their systems, all to the benefit of their quality and functionality.

The aluminium structure is in primary anodized alloy (20μm) or painted in polyester powders

There are no limits in the horizontal direction, the screens can be used to surround spaces of all types and sizes, since the system is modular and completely flexible

• Made to measure according to customer requirements.
• All Glass: there are no vertical struts between mobile panels.
• Mobile panels are in glass that is tempered or laminated up to 10 mm, with polished edges.
• The lower part is in transparent or opaque glass up to 10 mm thick, or with a blank wall.
• Fixed modules can be made with the same aesthetics.
• The lower panel can be painted or covered as if it were a wall.
• Electrical movement with remote control or wall switch.  Single or group movement
• The mobile panel can be blocked in any position.
• Single electricity connection, there is an electrical feedthrough in each module.
• The clamps make it easy to put the panels in line, overcoming the problem of slopes.  Where necessary, a lower frame can be used, which creates a level where flooring can be installed from the outside.

More technical informations (Sections)

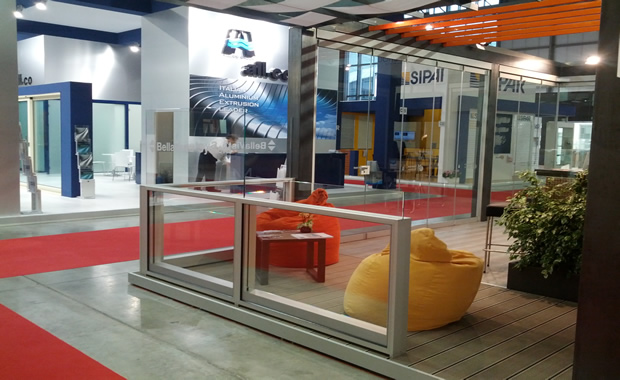

Screen, presentation at Made Expo

The movement
Electrical or manual opening and closing.

The fast and safe electrical system for opening and closing makes it possible to protect the environment and obtain localized shelter in just a few seconds.

The electrical movement is operated by a special remote control or live-man switch wall (according to the model or use). The panels can be moved individually or in groups. The power provided is 220V. Movement must be carried out under supervision. Otherwise you can have a manual movement.

The mobile panel can be blocked in any position.

Eletrical movement

Manual Movement

Context of use

Made to measure

Movement

(live man switch)

Maximum Dimensions

(W x H mm)

Glass

(Fixed Part)

Glass

(moving part)

Anchorage system

Elements with corneri

Introductory Video
Quality right in front of you

Look carefully at the details that ensure the quality of the GM Morando screen / windbreak. The video you are about to see was shot during a presentation of the BellaVista System during the Made Expo in Milan.

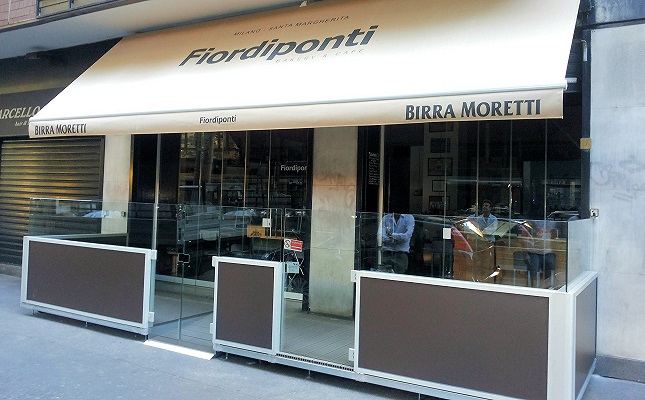

Blank wall panel
Screen for the outside

The video shows the opening and closing of the glass BellaVista System screen made with blank lower panels for a well-known Milanese bar.

Details
Door module

It is possible to have a door module made with minimal outlines, complete with lock and handle or bolts. With no need for anchorage at the top. The following models are available:

• Full height door (photo to the side)

• Saloon model door (reduced H)

Details
Glass Corner

Thanks to the absence of frame between the moving glass, BellaVista System creates an all-glass effect and you can enjoy the angle free from obstruction.

Details
Permanent seal

The panels in glass are only 4 mm away from each other. There is the option to install seals in transparent polycarbonate, specifically researched by GM Morando.

These seals for use in periods of residence are fitted between the two glass panels, closing out draughts and providing even greater protection to the environment. This possibility is particularly appreciated by business owners with open spaces that, during the winter months, can have a complete glass barrier.

Personalization
Types of glass and finishings

It is possible to personalize the BellaVista System both from the functional point of view, selecting the geometry and the measurements, and also from the aesthetic point of view, tilted parts in aluminium and glass in an infinite range of finishings (for the aluminium: including anodised, painted or wood effect; for the glass, including transparent to extra light or etched or even having personalized decorations).
