BellaVista System
What are the systems using the BellaVista System?

This is a set of solutions for outdoors, created to offer protection from the bad weather and the wind and guarantee maximum transparency, thanks to the “All Glass” philosophy. Suitable for Horeca or home use.

Choose the model most suitable for your needs from the range offered:

BellaVista System PLUS

This is a vertical, telescopic sliding glass panel

An ideal system if there is very large mirroring to be protected. Disponibile com movimento TOP-DOWN o BOTTOM-UP.
Avaible even 3 glasses model: 2 sliding glassed
Can be used as windows or shop fronts (for example, for direct sales with passers-by)
Hatches for restaurants, bakers, delicatessens.
It's possible to hide the frames into walls or forniture.
Suitable for Horeca or home use.

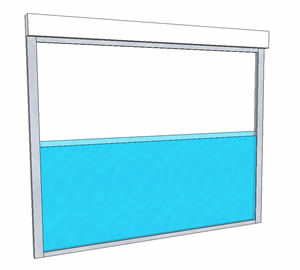

Windbreaker / Shop window
(TOP-DOWN)

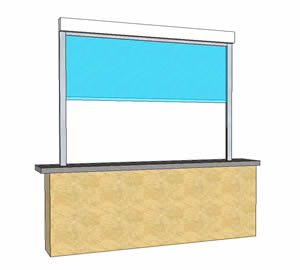

Hatch / Shop front
(BOTTOM-UP)

BellaVista System Sliding
Electric up and down movement – two possible uses

Electric All Glass screen / windbreak created for bars and restaurants (horeca), ideal for protecting outdoor areas, arcades and gazebos.
A parapet with up and down glass incorporated: a new possibility for sheltering terraces and balconies from the wind. Made to measure.

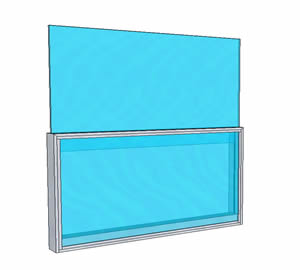

Windbreak

Parapet (blank panel or glass)

BellaVista Freestanding System

Exclusive All Glass design of modular screen:

LIGHT: wind break with elegant sloping glass and the possibility of placing lights inside
FLOWER: with a vertical glass pane and a flower box at its base.
RELAX: a third model with a bench and an opening box

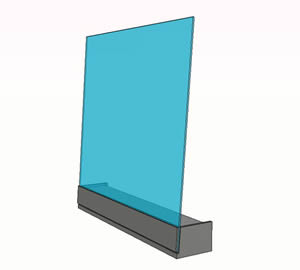

LIGHT model, set up for lights
body of steel

FLOWER model, with flower box
body of aluminium

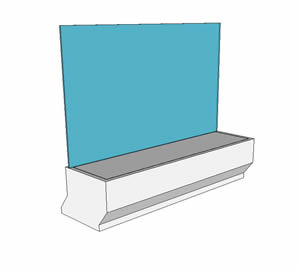

RELAX, with a bench and opening box
body of steel

Table
You can choose from the comparative table:

	Context of use	Made to measure	Movement (live man switch)	Maximum dimensions (W x H mm)	Glass (Fixed part)	Glass (moving part)	Anchorage System	Elements with corner
BellaVista Mobile WINDBREAK	Windbreak	Yes	Electric movement (220V) with remote control or wall switch.	Advised: 2000 x Frame 1100 Glass 2000	Laminated 44 Tempered 10 mm / Laminated 55 blank panel	Tempered 10 mm / Laminated 55	Fixing clamps	All glass
BellaVista Mobile PARAPET	Parapet	Yes	Electric movement (220V) with remote control or wall switch.	1600 x Frame 1100 Glass 2000	Laminated 44 Blank panel	Laminated 55 / Tempered 10	Fixing clamps	All glass
BellaVista PLUS Shop front, Windbreak (TOP/DOWN)	Windbreak Shop Window	Yes	Electric movement (220V) with wall switch.	3000 x 3000*	Laminated or tempered (till 24mm) Blank panel	Tempered 10mm	only side	Corner with mounts
BellVista PLUS Hatch (BOTTOM UP)	Hatch Shop Window	Yes	Electric movement (220V) with wall switch.	3000 x 3000*	Tempered 10/12mm Blank Panel	Tempered 10mm	only side	Corner with mounts
BellaVista freestanding LIGHT	Steel Windbreak Sloping glass and light inside	Yes	Fixed glass. Movable modules	Advised: 1500 x 1500	Tempered 10 mm	-	Fixing clamps or loads	All glass
BellaVista freestanding FLOWER	Aluminium Windbreak Vertical glass with flower box	Yes	Fixed glass. Movable modules	Advised: 1500 x 1500	Tempered 10 mm	-	Fixing clamps or loads	All glass
BellaVista freestanding RELAX	Steel windbreak with a bench and opening box	Yes	Fixed glass. Movable modules	Advised: 1500 x 1500	Tempered 10 mm	-	Fixing clamps or loads	All glass

* It is possible to build higher with upper fixed glass.

Suggested Routes

To ask for an estimate or a retailer: go to Contact us

Download BellaVista System brochure or other related literatrure
