Solutions
|
|
|
 |

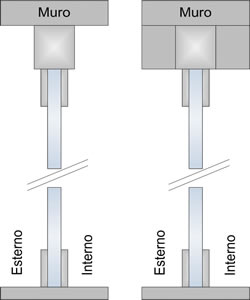

Standard ceiling attachment with exposed top rail or even recessed. With this attachment it’s possible to have either external or internal opening. It can be used for up to an overall height of 2900mm.
|
|
|
 |

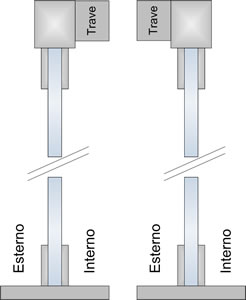

Lateral attachment to internal or external ceiling beam (or to the wall). For both options, external or internal opening is possible.
|
|
|
 |

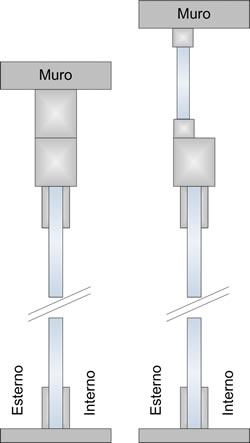

There are two options for heights over 2900mm. Up to 3000mm a double top rail can be fitted. Alternatively you can have a fixed or opening transom window.
|
|
|
 |

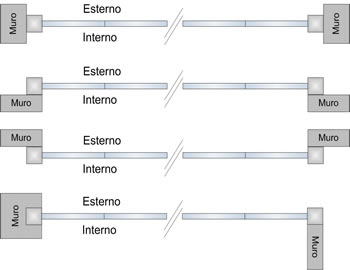

Laterally, it is possible to install the Gm System with the mounts in view (first diagram) or beyond tight size (second and third diagrams) to hide from view.
|
|
|
 |

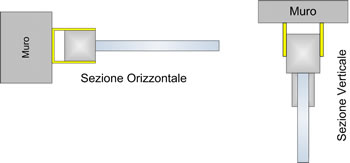

The diagram shows the overall dimensions of the Gm Systems horizontal and vertical fixtures. |
|
|
 |
To remedy any crooked walls or floors the Gm System can be installed with fixtures developed specifically for this purpose.
|
|
|
 |
Folding up doors beyond the tight size The top rail and floor guide rail can be extended to allow you to fold up the glass doors beyond the tight size (this option is only available with a floor guide rail). |
 |
Hidden folding doors It’s possible to create niches in which the doors can be hidden when folded up |
 |
Porch with columns Our customers often believe they have to put different windows/doors between each column of their porch, nothing could be more wrong: just install the Gm System on the inside or outside of the columns and this will allow you to fold up the doors to one position only. |
 |
Arches If you need to close off an arched porch then the Gm System is ideal: you can install the Gm System folding doors and upper rail on the inside of the arch and then there will be no need for any unsightly horizontal beams. |
 |
The best lighting The best way to accentuate the Gm System is to insert recessed spotlights into the ceiling and hide the upper rail. A good alternative is to put coloured LED lights behind semi-transparent glass doors which produce rays of coloured light all over the glass.
|
