Approfondimento
|
|
What is a solar greenhouse?It’s an energy storage system created by using a high volume of glazed surfaces that allow the suns’ rays to penetrate inside creating an increase of heat and natural lighting. It’s a simple and effective way to save energy in a building and can be achieved by closing off balconies, terraces, porches and other cavities.
|
|
What are the regulations for a solar greenhouse?How can the greenhouses be created? On many buildings there are tanks carved into the roof on the terrace or arcades which are exposed to solar light. This is an inefficient use of energy. All south facing terraces are perfect for capturing this solar energy and according to the new regional regulations they can be closed off and used as bioclimatic greenhouses. The same principal cannot be applied to terraces facing the north, east or west. In fact in these cases the greenhouses wouldn’t be hit by solar rays so wouldn’t be able to accumulate thermic energy suitable to the regulations. What do the regulations say? What is a technical volume? When can the regulations not be applied? What are the correct steps to follow to check feasibility? If I were to have a bioclimatic greenhouse what other benefits would there be apart from energy saving? Can the Giemme System windows be considered detachable/removable?
|
|
How does the solar greenhouse work? The solar greenhouse, created by the all-glass Giemme System doors can be harnessed to produce energy in both winter and summer. |
|
During the winter, the sun’s energy penetrates the greenhouse. Thermal energy is accumulated by the floors, walls and air and then transferred indoors by an installed tubing system. It also reduces the dispersion of the internal heat thanks to the solar greenhouse. |
 |
The folding glass door Giemme System, made with 10mm tempered glass, is a real barrier against air and other atmospheric elements. This is thanks to the transparent polycarbonate seals between the doors and the system of perimeter seals in EPDM polypropylene fibres. The Giemme System complies with UNI EN 14351-1. |
|
When the greenhouse is closed during the summer, the heated air circulates in the so-called “solar chimney”. This creates a continuous flow of air and thus naturally cools the building. However, please note that in summer, the Giemme System can be opened completely or partially, depending on your needs. |
 |

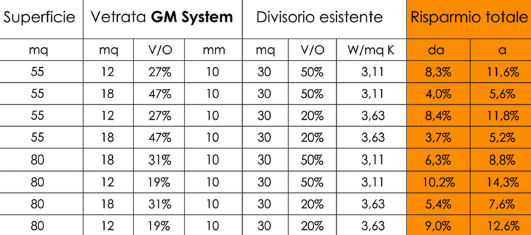

GM Morando conducted a series of energy simulations regarding the winter scenario. It emerged that with every solar greenhouse built from the Giemme System, energy savings ranged from 4-14% and can reach up to 20% if an adequate ventilation system is in place. |
|
 |
|
The solar greenhouse (and in a broad sense anything that involves energy saving) is strongly protected by both national and regional community law. With this in mind, many building regulations and councils are moving in a positive direction by adopting streamlined procedures to promote and encourage building made for the purpose of energy saving. For example, this could be tax benefits, recovery of usable volume areas, compatible with the regulations in force in the local council where you want to install it.
|
|
|
|
Technical Specification The best results can only be achieved with the best technology. GM Morando's products are easy to use thanks to the constant development of new technology. |
|
|
|
Solutions The colour, the glass, the method of folding the glass (external, internal or at one or both sides), doors, locks….decisions to be taken |
|
